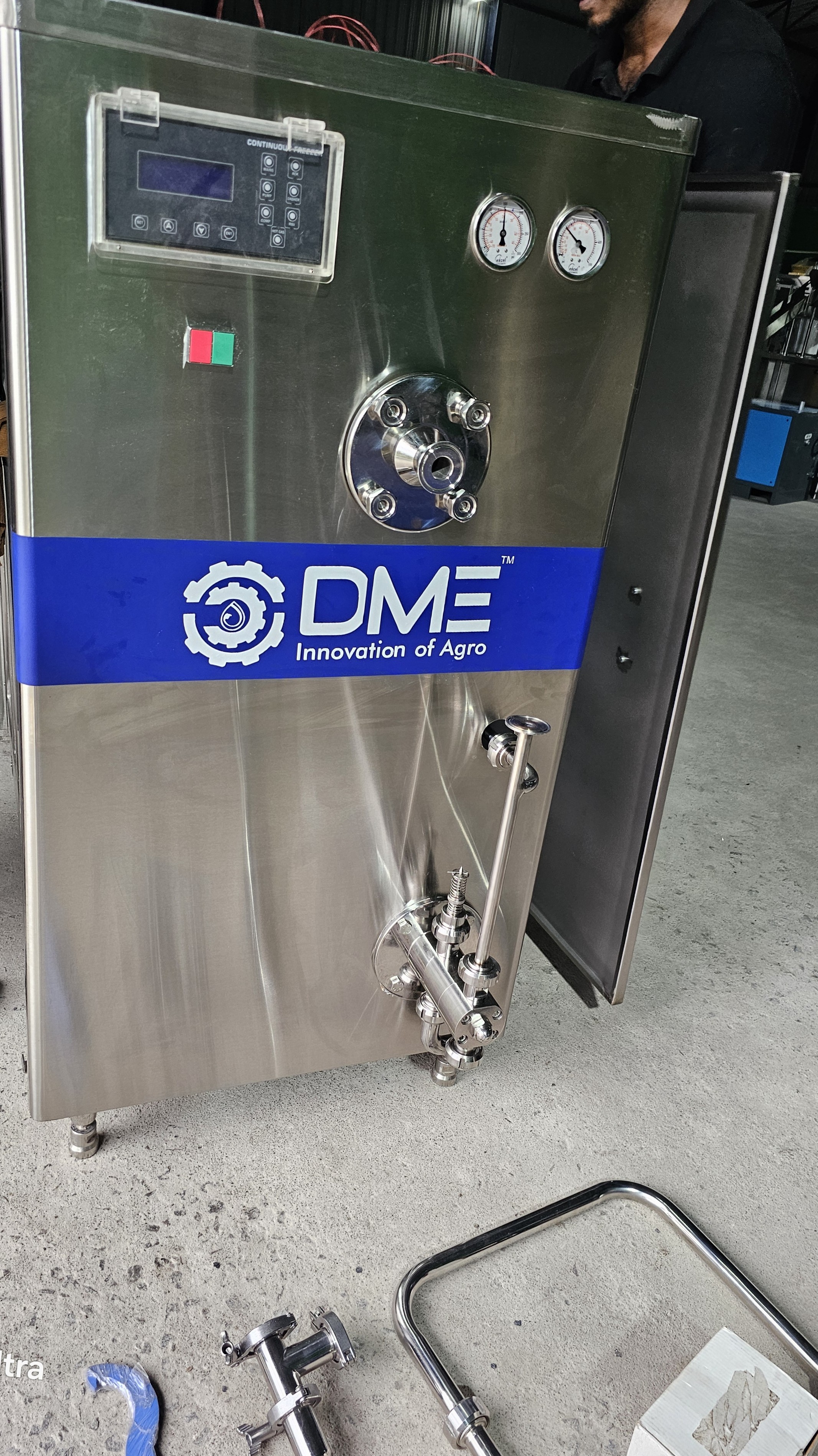

A continuous ice cream freezer is an industrial machine designed for the large-scale production of ice cream, providing a constant, uninterrupted stream of finished product with precise and uniform quality.
It simultaneously performs the three essential steps of ice cream production: freezing, mixing, and aeration (whipping in air).
How a Continuous Freezer Works 🍦
The process within a continuous freezer is highly automated and involves several integrated components:
* Mix Pumping & Air Injection: A controlled flow of pasteurized liquid ice cream mix is drawn from a holding tank by a mix pump (often a gear or piston pump). At the same time, a measured amount of filtered, compressed air is injected into the mix flow.
* Freezing Cylinder: The pressurized mixture of liquid base and air is pumped into a highly-efficient, jacketed freezing cylinder (or barrel). This cylinder is surrounded by a boiling refrigerant (like ammonia or Freon), which rapidly removes heat from the mix.
* Scraping and Whipping (Dasher): Inside the cylinder, a rotating component called a dasher is equipped with sharp scraper blades.
* The blades continuously scrape the partially frozen layer of ice cream off the inner wall of the cylinder, preventing the formation of large ice crystals and ensuring a smooth texture.
* The dasher also whips the air into the mix, creating the desired overrun (the increase in volume due to incorporated air).
* Discharge and Hardness Control: The resulting semi-solid ice cream is pushed forward by the flow and discharged out of the cylinder's outlet valve. The viscosity (or hardness) of the finished ice cream is precisely controlled by regulating the mix flow, air flow, and refrigerant temperature.
Key Components
The main parts that enable the continuous freezing process include:
* Mix Pump (Gear/Piston Pump): Meters the exact amount of liquid mix into the cylinder.
* Air Pump/Regulator: Controls the flow of filtered air to set the overrun.
* Freezing Cylinder (Barrel): The heat exchanger where the freezing takes place, typically made of hard chrome-plated stainless steel.
* Dasher and Scraper Blades: The rotating internal assembly that scrapes the frozen film off the wall and incorporates air.
* Refrigeration System: Includes a compressor and condenser that circulate the super-cold refrigerant around the cylinder jacket.
* Control Panel (PLC): Automated controls for precisely managing mix flow, air pressure, cylinder pressure, temperature, and overrun.
Advantages Over Batch Freezers
Continuous freezers are the workhorses of large-scale commercial production, offering significant benefits over the smaller batch freezers used in artisan shops or restaurants:
| Feature | Continuous Freezer | Batch Freezer |
|---|---|---|
| Production Scale | High to very high volume | Small to medium volume (batch-by-batch) |
| Consistency | Excellent—Highly uniform texture and overrun | Good, but minor batch-to-batch variation is possible |
| Overrun Control | Precise and Automated—Key to texture and profitability | Manual or less precise control |
| Texture | Smoother due to extremely rapid freezing and smaller ice crystals | Generally good, but freezing is slower |
| Automation | Fully automated and integrated into a production line | Requires constant operator attention for each batch |
You can learn more about this equipment by watching this video: Inside & Out:
YOUTUBE CHANNEL: DAIRYAM ENGINEERING
It simultaneously performs the three essential steps of ice cream production: freezing, mixing, and aeration (whipping in air).
How a Continuous Freezer Works 🍦
The process within a continuous freezer is highly automated and involves several integrated components:
* Mix Pumping & Air Injection: A controlled flow of pasteurized liquid ice cream mix is drawn from a holding tank by a mix pump (often a gear or piston pump). At the same time, a measured amount of filtered, compressed air is injected into the mix flow.
* Freezing Cylinder: The pressurized mixture of liquid base and air is pumped into a highly-efficient, jacketed freezing cylinder (or barrel). This cylinder is surrounded by a boiling refrigerant (like ammonia or Freon), which rapidly removes heat from the mix.
* Scraping and Whipping (Dasher): Inside the cylinder, a rotating component called a dasher is equipped with sharp scraper blades.
* The blades continuously scrape the partially frozen layer of ice cream off the inner wall of the cylinder, preventing the formation of large ice crystals and ensuring a smooth texture.
* The dasher also whips the air into the mix, creating the desired overrun (the increase in volume due to incorporated air).
* Discharge and Hardness Control: The resulting semi-solid ice cream is pushed forward by the flow and discharged out of the cylinder's outlet valve. The viscosity (or hardness) of the finished ice cream is precisely controlled by regulating the mix flow, air flow, and refrigerant temperature.
Key Components
The main parts that enable the continuous freezing process include:
* Mix Pump (Gear/Piston Pump): Meters the exact amount of liquid mix into the cylinder.
* Air Pump/Regulator: Controls the flow of filtered air to set the overrun.
* Freezing Cylinder (Barrel): The heat exchanger where the freezing takes place, typically made of hard chrome-plated stainless steel.
* Dasher and Scraper Blades: The rotating internal assembly that scrapes the frozen film off the wall and incorporates air.
* Refrigeration System: Includes a compressor and condenser that circulate the super-cold refrigerant around the cylinder jacket.
* Control Panel (PLC): Automated controls for precisely managing mix flow, air pressure, cylinder pressure, temperature, and overrun.
Advantages Over Batch Freezers
Continuous freezers are the workhorses of large-scale commercial production, offering significant benefits over the smaller batch freezers used in artisan shops or restaurants:
| Feature | Continuous Freezer | Batch Freezer |
|---|---|---|
| Production Scale | High to very high volume | Small to medium volume (batch-by-batch) |
| Consistency | Excellent—Highly uniform texture and overrun | Good, but minor batch-to-batch variation is possible |
| Overrun Control | Precise and Automated—Key to texture and profitability | Manual or less precise control |
| Texture | Smoother due to extremely rapid freezing and smaller ice crystals | Generally good, but freezing is slower |
| Automation | Fully automated and integrated into a production line | Requires constant operator attention for each batch |
You can learn more about this equipment by watching this video: Inside & Out:
YOUTUBE CHANNEL: DAIRYAM ENGINEERING
